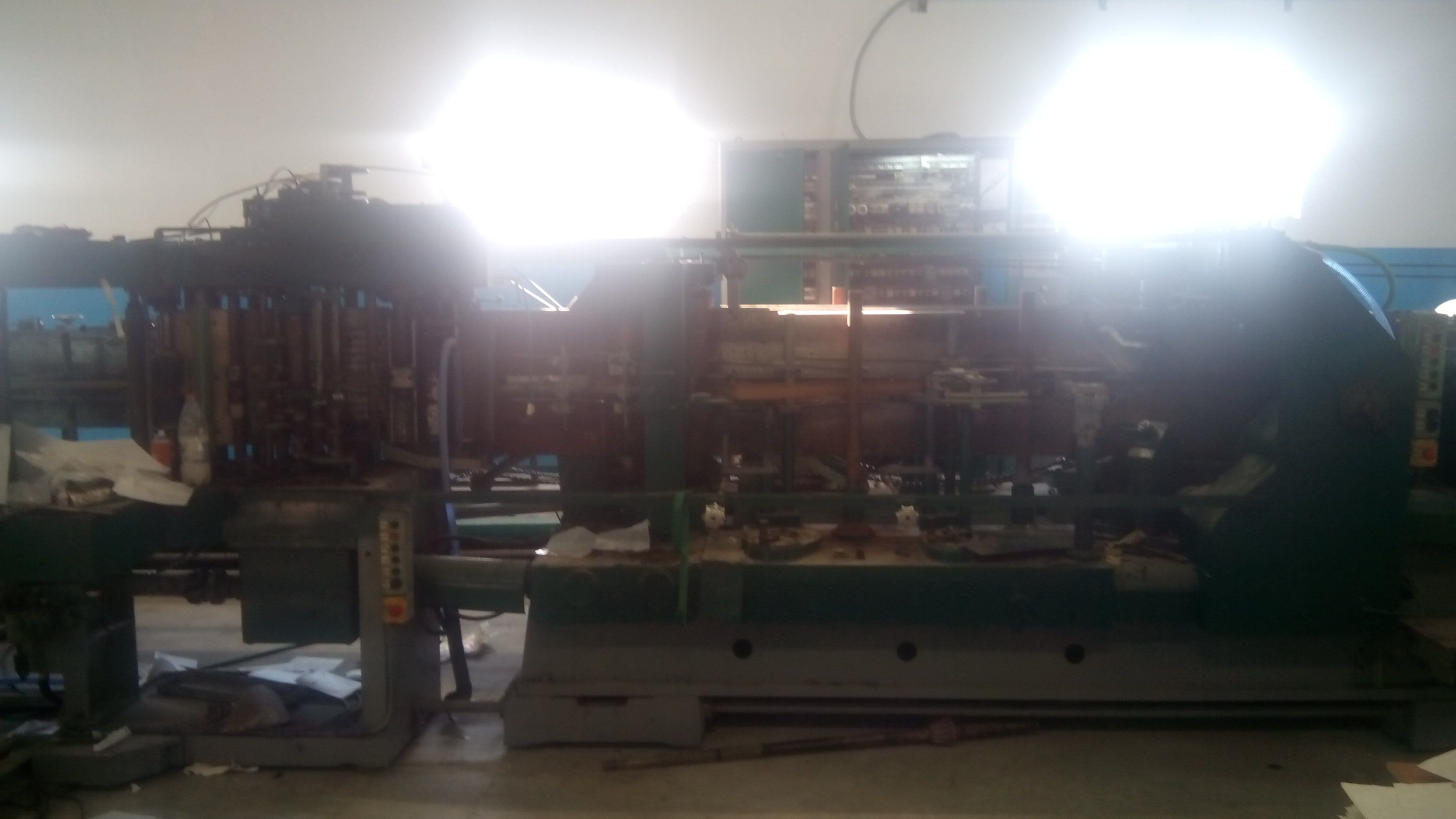

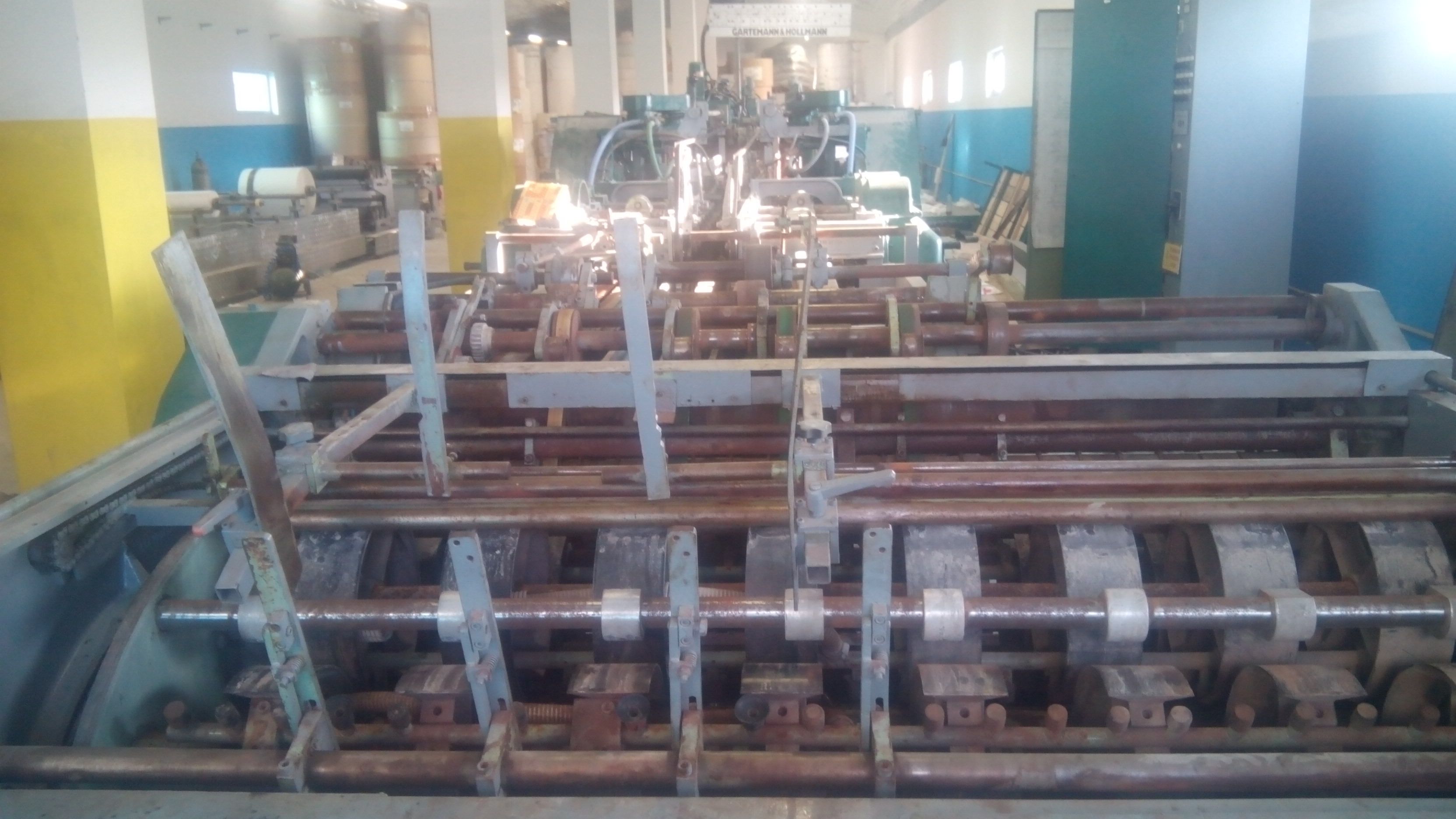

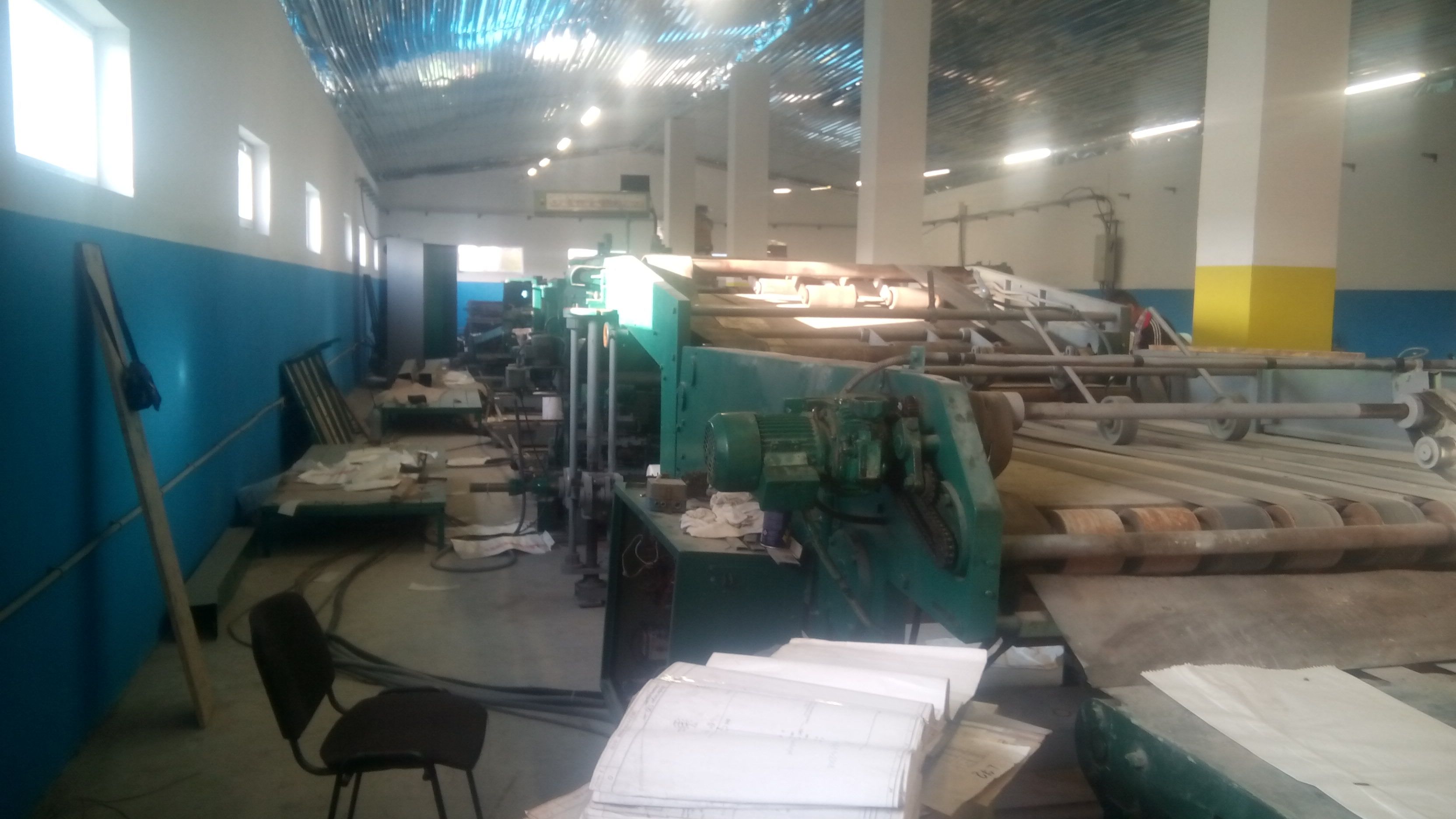

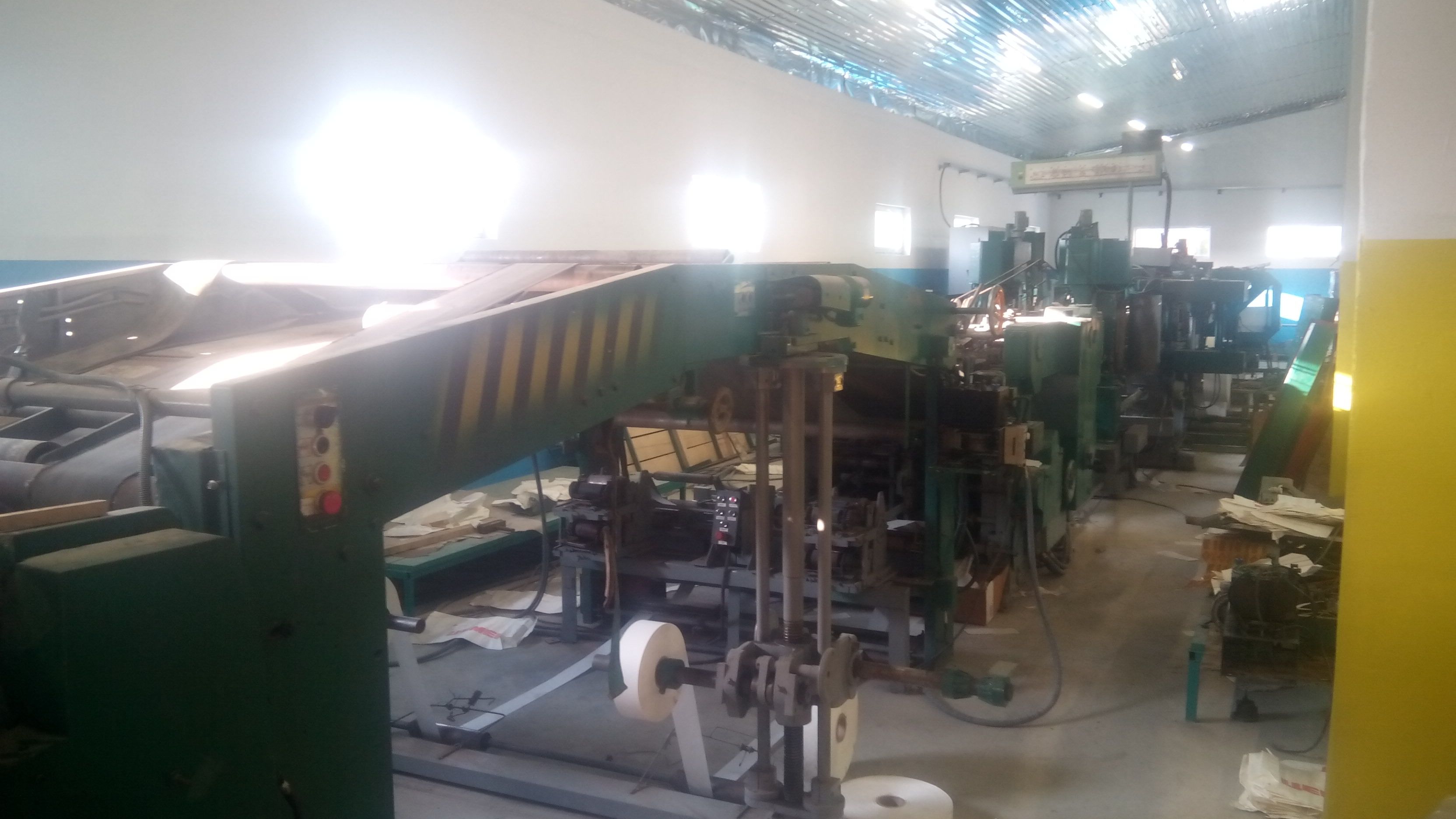

Bottomer G+H Progress 530

Описание

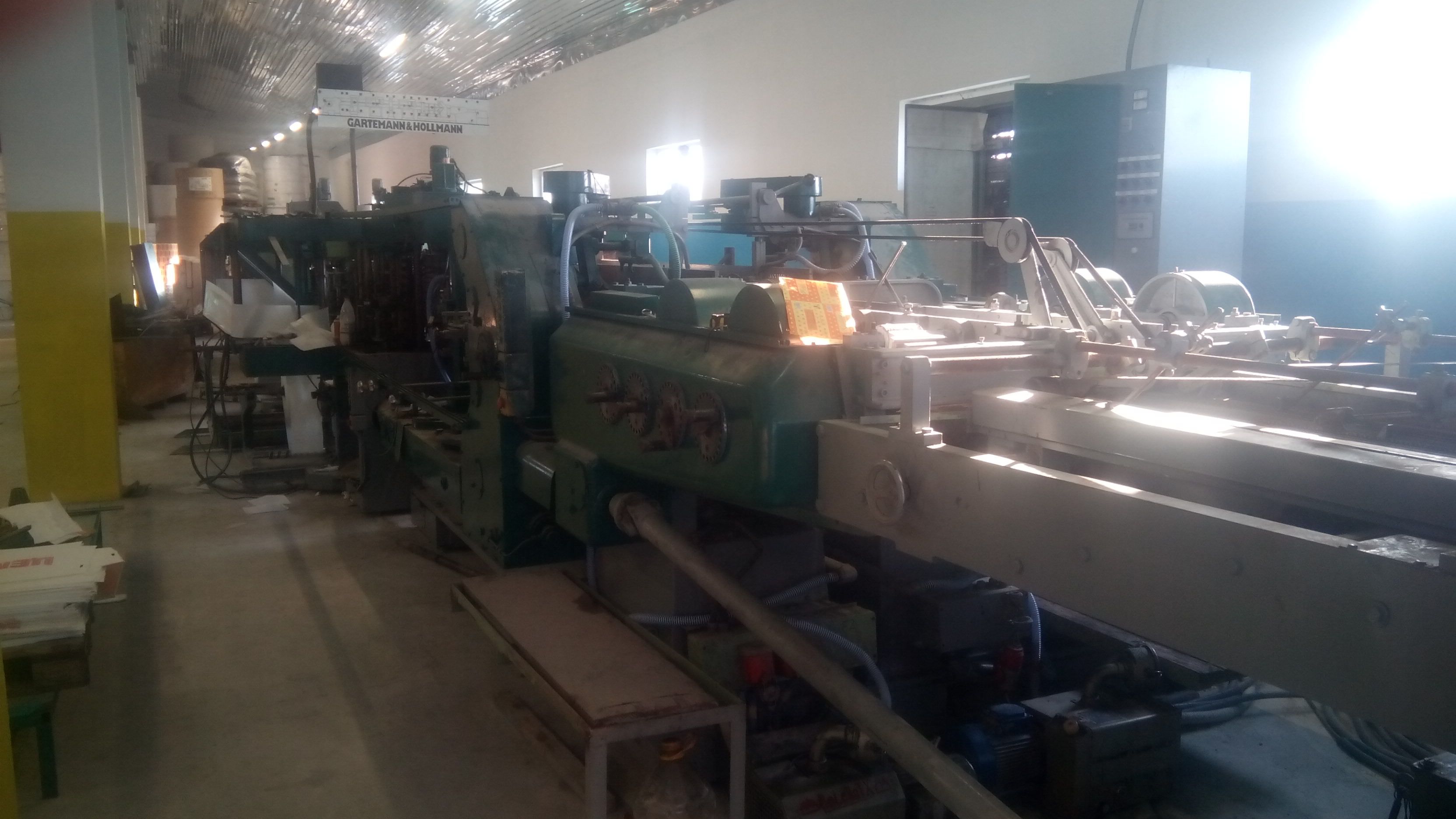

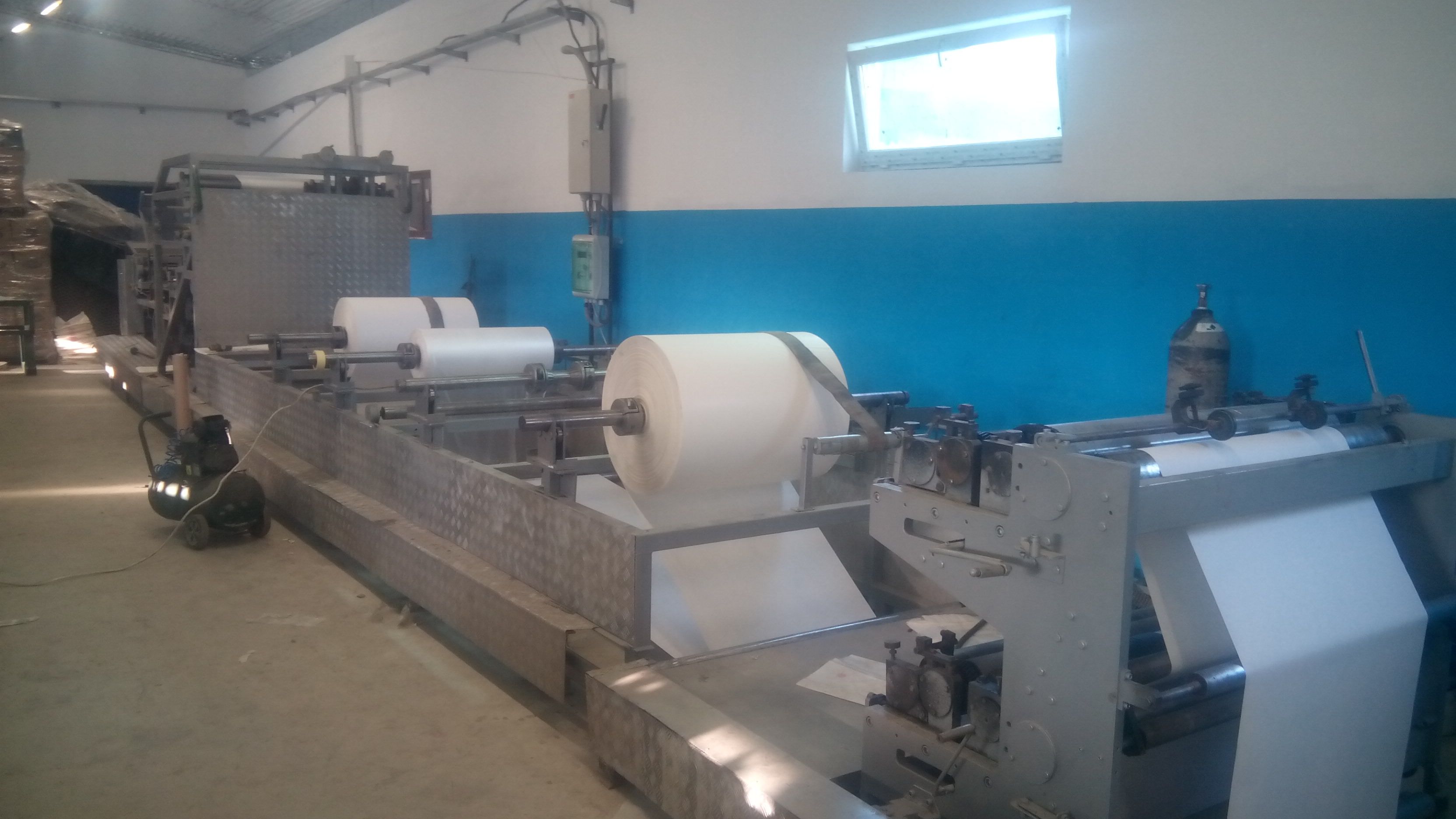

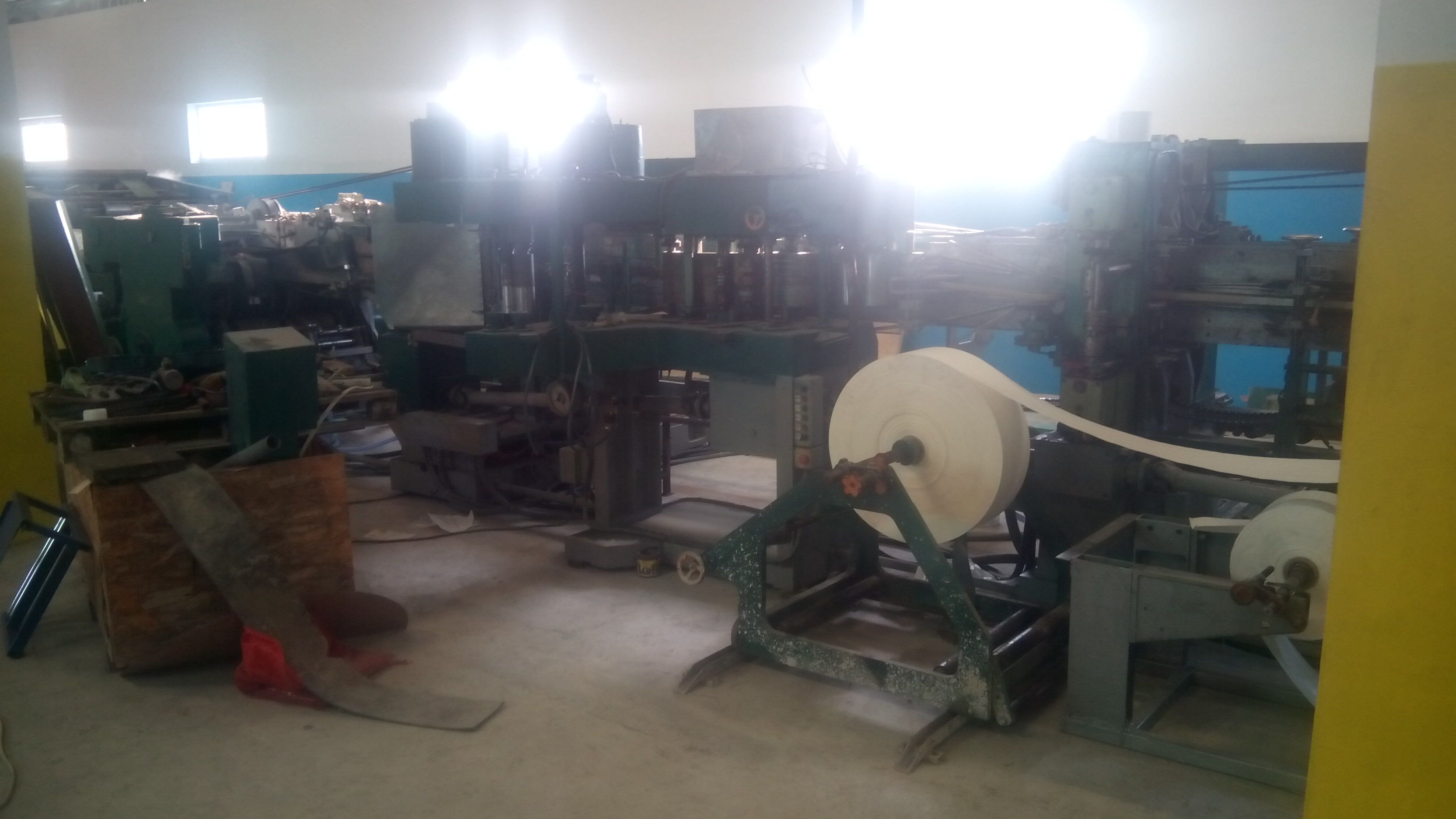

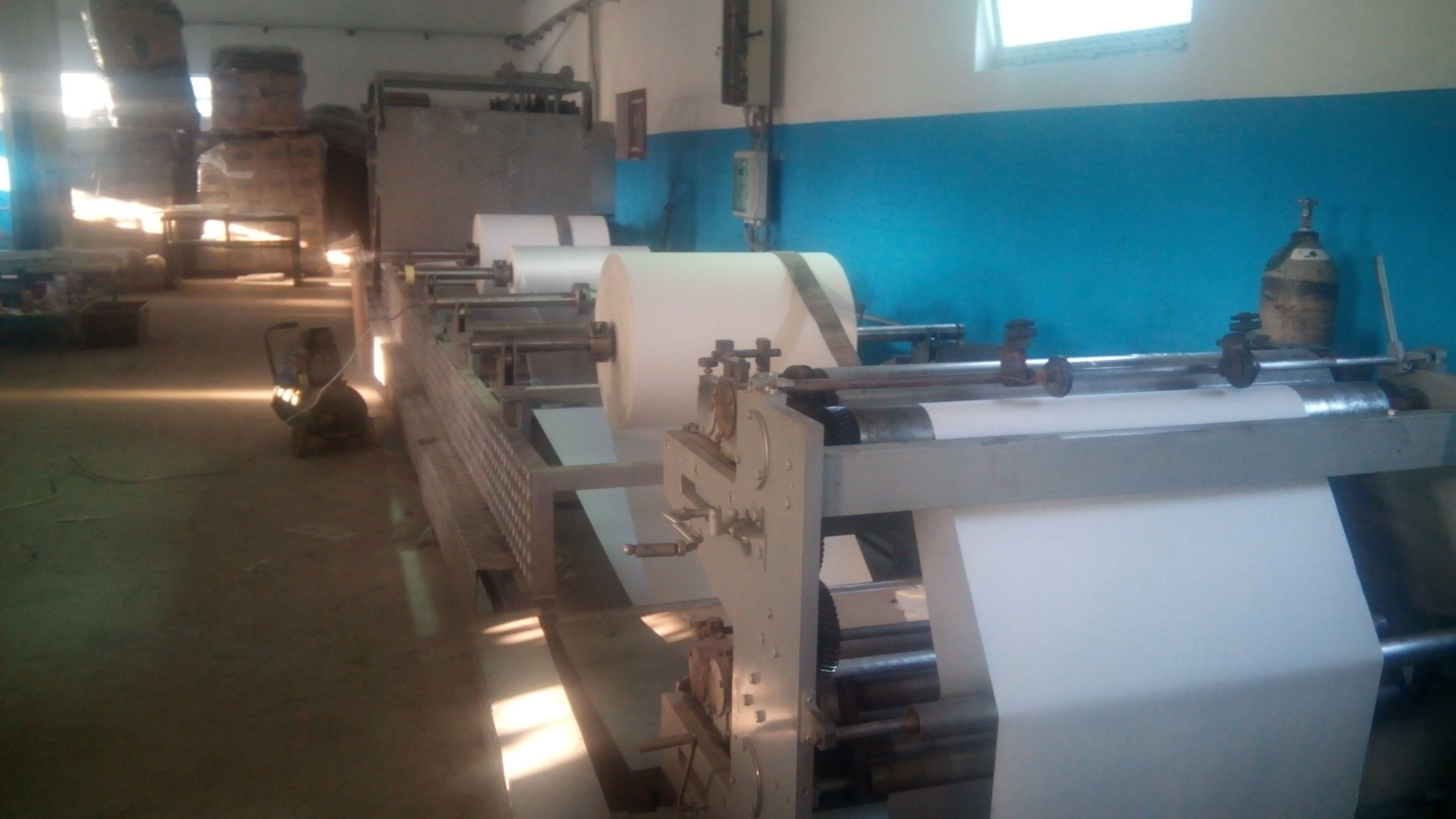

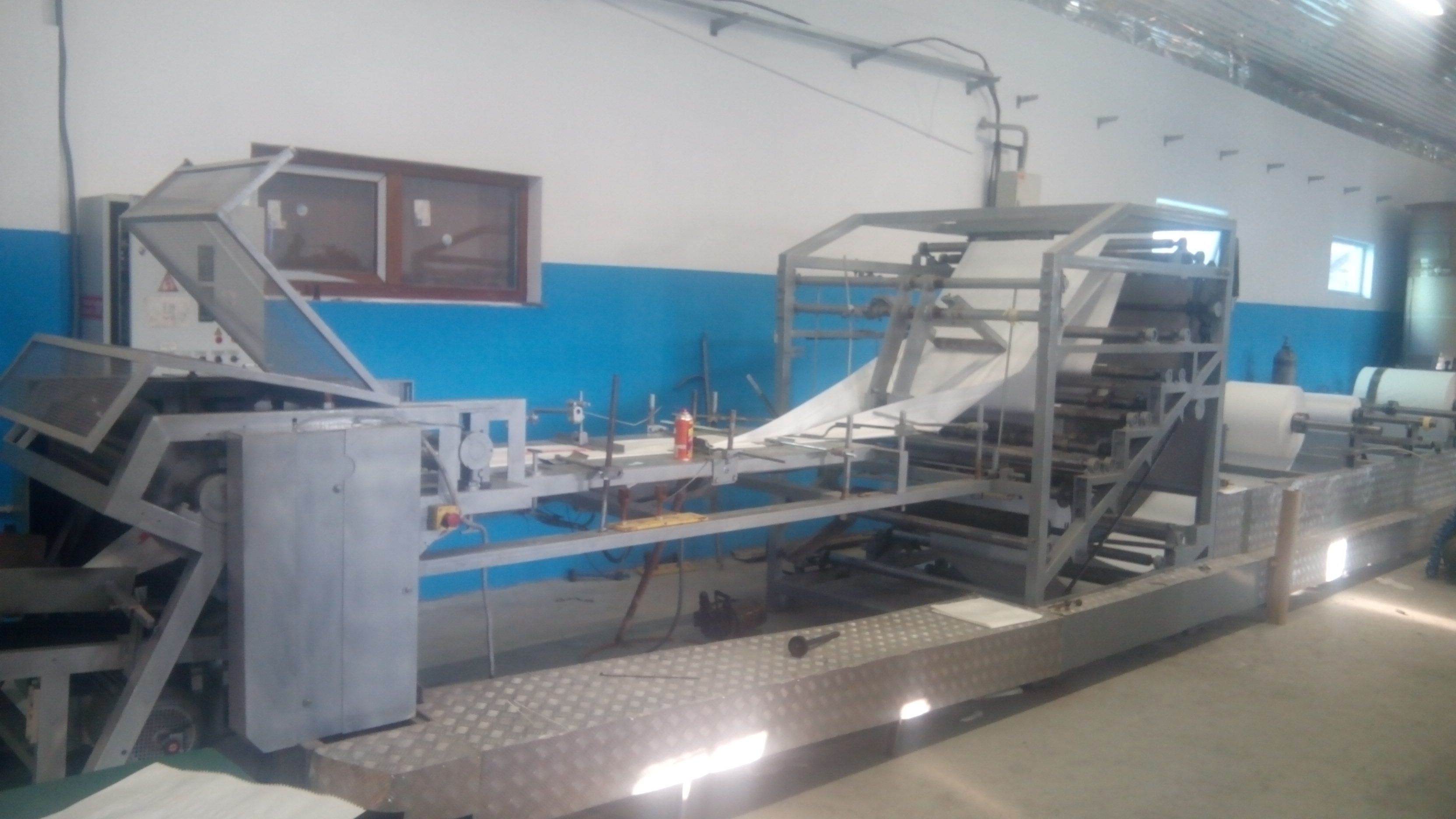

A complete set consists of pipe (Tube) line of DM-52 (Rossiya) and bottom line G+H Progress 530 (Germany).

Productivity of this complete set a to 100 000 bags/day (depending on a size and qualification of workers).

Now a line in a modernization and renowation.

Will be accessible for 2 weeks.

Price 392 000 EUR

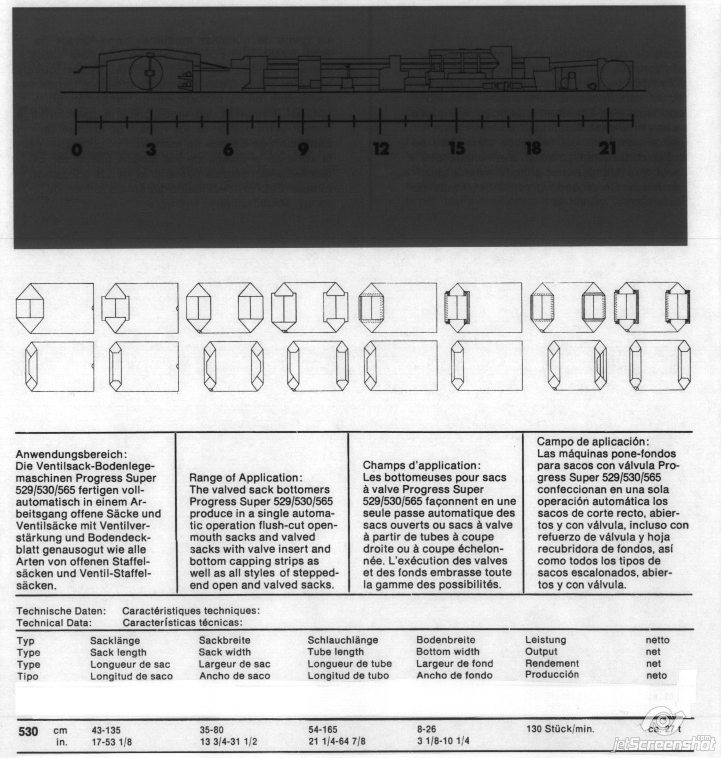

Technical data:

·         Bottomer G+H Progress 530

·         Year: 1988

·         Sack width: 300 - 650 mm

·         Sack length for bottom width:  70 - 125 mm  : 340 - 1205 mm

·         Sack length for bottom width: 130 - 185 mm  : 460 - 1265 mm

·         Bottom width (flush/stepped-end): 70 - 185 mm

·         Bottom center line distance for bottom width: 70 - 125 mm  : 270 - 1080 mm

·         Bottom center line distance for bottom width : 130 - 185 mm  : 530 - 1080 mm

·         Bottom capping strip - Cut off length: 180 - 580 mm

·         Cut length in steps of   : 100 mm

·         Max Paper reel width: 250 mm

·         Max Paper reel diameter : 1300 mm

·         Valve Unit -Cut off length: 100 - 280 mm

·         Cut off length in steps of  : 50 mm
